Vixen Flatpack Powder Coating Equipment

Precision Thermal Processing Solutions for Every Industry Need

Having 35 years of experience in the surface Treatment industry, Vixen are delighted to now launch a truly first-class range of powder coating curing ovens and spray booths.

Designed by an experienced team of professionals using only the very best materials, our systems are built for consistent finishes, reliable performance, and long-term durability. With a focus on efficient airflow, accurate temperature control, and practical day-to-day usability, they’re ideal for businesses looking to improve quality, throughput, and comfort.

Efficient airflow

1 Year Manufacturer Warranty

Temperature Range from 220°C up to 600°C

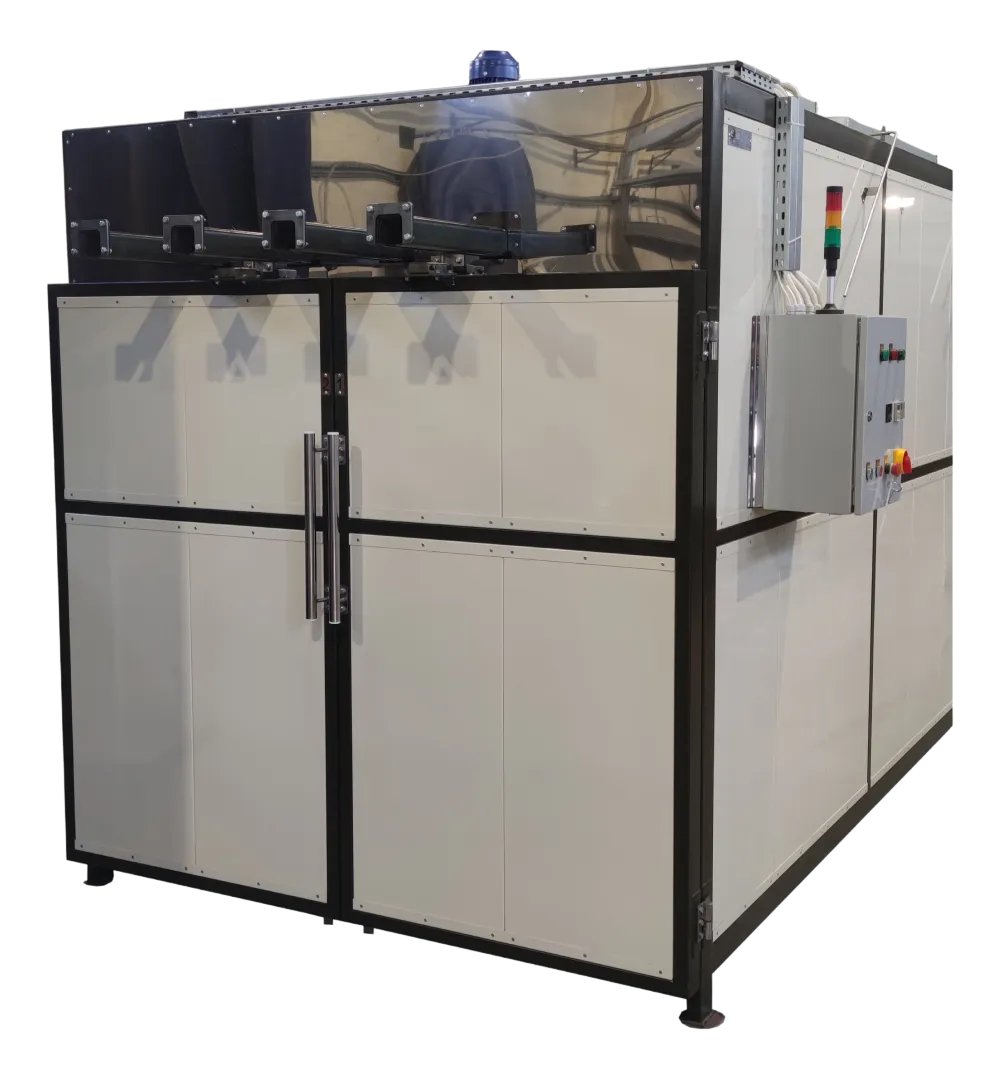

Vixen Powder Coating Curing Ovens

Our top-class curing / drying ovens are available in a variety of sizes to accommodate virtually all payloads and can be supplied with many different product loading options.

Temperature ranges available from 220°C up to 600°C
Fitted with coloured HMI screen and a PLC they are able to achieve high levels of thermal process control, stability and temperature uniformity.
Vixen Electric powered curing/drying Ovens are general purpose, electric, batch ovens with a standard temperature setting of 220°C, higher temperature ovens of up to 600°C available upon request.

They are ideally suited for a vast range of low temperature thermal processes such as drying, curing of resins, paints, composites. and other low temperature thermal processes.

Constructed from a heavy-duty steel box sectioned frame with infilled 160 and 300 mm thick insulated galvanised panels and externally clad in a hard-wearing powder coated finish.

Powder Coating Curing Ovens

Technical Specifications

  • Oven door framework made from corrosion and temperature resistant high quality stainless steel
  • Forced air circulation with roof mounted fan/s
  • Multi-positional hot air return vents for uniform heat distribution
  • Temperature calibration achieved by adjustable holes in side walls
  • Forced air ventilation (ventilation fan blows cool air into the oven to extract and cool via vents)
  • Double loading doors with adjustable, explosion proof, slam shut positive, door locks
  • Design tested to achieve ± 5°C over a 9-point survey
  • Controlled and automatic exhaust damper for programmed fume ventilation as you need for your process
  • Insulated floor with roll in/roll-out trolley and hanging frame. (optional)
  • Roof mounted hanging rails (optional)
  • Re-enforced flat, load bearing oven floor (optional)
  • Galvanised coated internal work chamber sheets
  • Modular electric heating system – ovens can be supplied with increased max temperature settings ( 250 – 300 – 350 – 400 -450 – 500 – 600°C
  • Silicone door seals
  • 240mm + thick insulation
  • CE Marked
  • 1 year manufacturer warranty
